Low Carbon Steel Welded 50 X 50mm Galvanized Steel Welded Wire Mesh Panel
Welded wire mesh
welded wire mesh is welded form superior low carbon steel wire and then galvanized and PVC coated or stainless steel wire and then welded. .It features smooth surface,uniform mesh,high stability and great corrosion resistance.
Material: high tensile steel deformed bars, low carbon steel rod Q195 or Q235.
Wire diameter: 3mm-- 16mm
Panels opening: the Horizontal from 50mm to 200mm, the Vertical from 25.mm to 500mm
reinforcing welded mesh Panel length: 1.0m to 5.8m
reinforcing welded meshPanel width: 0.5m to 2.3m
Features: welded concrete reinforcement meshes are made from high tensile steel deformend bars. It can stretch the concrete closely, solid construction, easy handling.
Welding points: welded by advanced heavy load welding machine, which gives the wires very strong welding points. Every point was carefully examined after welded, and all problems will be amended by the examination.
Packing: in bundles, bulk in the container or as per request.
Welding style:
1-Electro galvanized wire mesh(welded before galvanized, welded after galvanized)
2-Hot-dipped galvanized wire mesh(welded before galvanized, welded after galvanized)
3-PVC coated welded wire mesh
4- stainless steel wire welded mesh
Specification:
| Specification List of Welded Wire Mesh: |
| Opening | Wire Diameter<BWG> |
| In inch | In metric unit(mm) |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
| Normal Specification List of Welded Wire Mesh Panel |
| Opening |
Wire Diameter(mm) |
| In inch | In metric unit(mm) |
| 1"x1" | 25mm x 25mm | 2.5mm,2.0mm,1.8mm,1.6mm |
| 2"x2" | 50mm x 50mm | 2.5mm,2.0mm,1.8mm,1.6mm |
| 2"x3" | 50mm x 70mm | 6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm |
| 2"x4" | 50mm x 100mm | 6.0mm,5.0mm,4.0mm,3.0mm,2.0mm |
| 2"x6" | 50mm x 150mm | 6.0mm,5.0mm,4.0mm,3.0mm |
| 2"x8" | 50mm x 200mm | 6.0mm,5.0mm,4.0mm,3.0mm |
| 3"x3" | 75mm x 75mm | 6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm,1.6mm |
| 3"x4" | 75mm x 100mm | 6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm |
| 4"x4" | 100mm x 100mm | 6.0mm,5.0mm,4.0mm,3.0mm |
| 6"x6" | 150mm x 150mm | 6.0mm,5.0mm,4.0mm,3.0mm |
| Technical Note: |
1,Standard Panel length: 0.5-5.8m; width:0.5m to 2.3m
2,Special sizes available at request. |
Welded wire mesh Use
Welded wire mesh is used in industry and agriculture building, transportation and mining for all such purposes as poultry houses, egg baskets, runway enclosures, draining rack, fruit drying screen, fence.
Welded wire mesh can be processed into wire mesh fence which can be used in Garden,yard,ground,railway,highway.
Packaging & Shipping
Packed in rolls :packed water-proof paper in bulk or by pallet

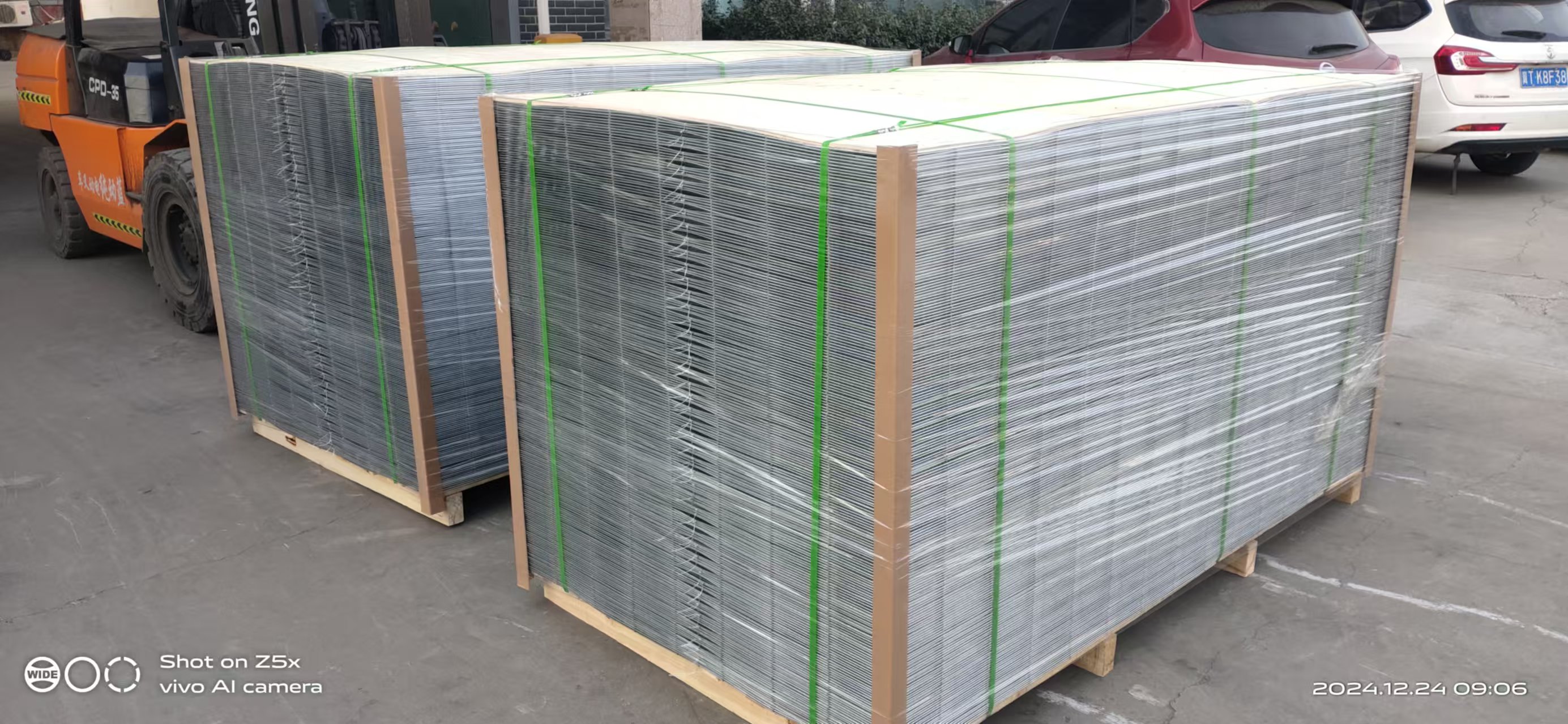

Packed in pieces: Plastic inside and then by pallet
